Please let us know your thoughts. We will customize The SS tank Details for you.
Technical Parameters
| Product name | Stainless Steel Oil Storage Tank |
|
Material |
SS304 with galvanized iron frame/ All SS304/ SS316L+ SS304 frame/ All SS316L/ Other metal material |
| Capacity | 50L-50000L |
|
Size |
Standard size: 1140*1140*1300mm (For load 40 pcs in one 40HQ container) Can also be customized as customers' need |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Warranty period |
One year |
|
Weight |
Around 220Kg (based on size and fittings) |
|
Working Pressure |
- Square tanks: Standard atmospheric pressure or up to 0.02 MPa - Round tanks: Available in 4 bar, 6 bar, and 10 bar models (contact customer service for custom specifications below these ratings) |
| Safety & Accessory Options |
- Fully configurable systems tailored to operational requirements - Base configuration includes safety valves - Common client additions: • Pressure relief/breathing valves • Precision pressure gauges • Liquid level monitoring systems • Custom instrumentation packages - No-charge consultation available for specialty component integration |
|
Feature |
Corrosion resistance |
|
Technics |
TIG welding; MIG welding;Laser welding;Automatic welding |
|
Application area |
Chemical industry, household use |
|
OEM & ODM |
Accept |
Application
Oil tanks can not only be used for edible vegetable oil, such as palm oil, olive oi, soybean oil, sunflower oi, tea tree oi, etc., but also foranimal oil, such as fish oil industrial oil, such as lubricating oil extracted from animal fat.
WIDELY USED IN VARIOUSTYPES OF OIL
Key Characteristics of Stainless Steel Oil Storage Tanks
- Strong Corrosion Resistance
Stainless steel contains chromium and nickel, which form a dense oxide film on the surface. This film prevents chemical reactions between oil (especially acidic or alkaline oil) and the tank body, avoiding rust contamination of the oil and extending the tank's service life.
- Hygienic & Easy to Clean
The smooth surface of polished stainless steel (common finish: 400#) does not easily adhere to oil residues, impurities, or microorganisms. This meets hygiene standards for edible oil, pharmaceutical-grade oil, and other high-purity oil storage, and simplifies post-use cleaning.
- Good Sealing & Safety
Most tanks adopt sealed structures (e.g., flange-sealed lids, pressure relief valves) to prevent oil volatilization, moisture intrusion, or dust contamination. For flammable oils (like fuel oil), they can be equipped with explosion-proof accessories to reduce safety risks.
- Adaptable to Diverse Environments
They perform well in both indoor and outdoor settings. For harsh conditions-such as coastal high-salt areas (using 316L stainless steel for enhanced corrosion resistance) or cold regions (with insulation layers)-the tank design can be customized to maintain stable oil storage conditions.
Common Application Scenarios
Edible Oil Industry: Used for storing soybean oil, peanut oil, and cooking oil in factories, refineries, or large catering facilities.
Industrial & Energy Sectors: Stores lubricating oil for machinery, hydraulic oil, or fuel oil for power generation equipment.
Petrochemical Industry: Serves as intermediate storage for crude oil or refined oil products in refineries or transportation terminals.
Agriculture & Aviation: Stores diesel for agricultural machinery or special aviation oil, requiring strict sealing and impurity control.
Types of Oil Storage Tanks include
Stainless steel single wall storage tank
Stainless steel double wall storage tank
Stainless steel movable storge tank with wheels
Stainless steel open lid tanks
Our Factory
We specialize in fully customized metal products with flexible OEM/ODM solutions. Our services accommodate specific brand components and accessory types to meet your exact requirements.
Key Customization Options:
- Tank configurations: Square/Round designs with optional stacking frames
- Functional features: Jacketed/coil heating-cooling systems, wheel bases, electronic controls
- Surface finishes: Mirror polish, 2B plate pickling, or custom treatments
- Material selection: SS304, SS316L, Q235 galvanized steel, and other metals
- Structural details: Adjustable dimensions, wall thickness, and valve configurations
Production Specifications:
- Welding standards: Leak-proof seams with smooth finishes - no slag, discoloration, or burrs
- Order flexibility: MOQ 1 unit (volume discounts available)
- Capacity engineering: Scalable solutions for any industrial application
- Design collaboration: Submit your blueprints or work with our engineering team
Primary Applications:
Industrial storage solutions | Bulk material transport | Process transfer systems
Pricing & Documentation:
All quotes are project-specific based on technical specifications. We provide comprehensive CAD drawings for client approval and welcome existing designs for manufacturing.
Cost efficiency improves with larger production runs due to optimized material utilization and streamlined workflows. Contact our engineering team to discuss your project requirements.
Our Certification

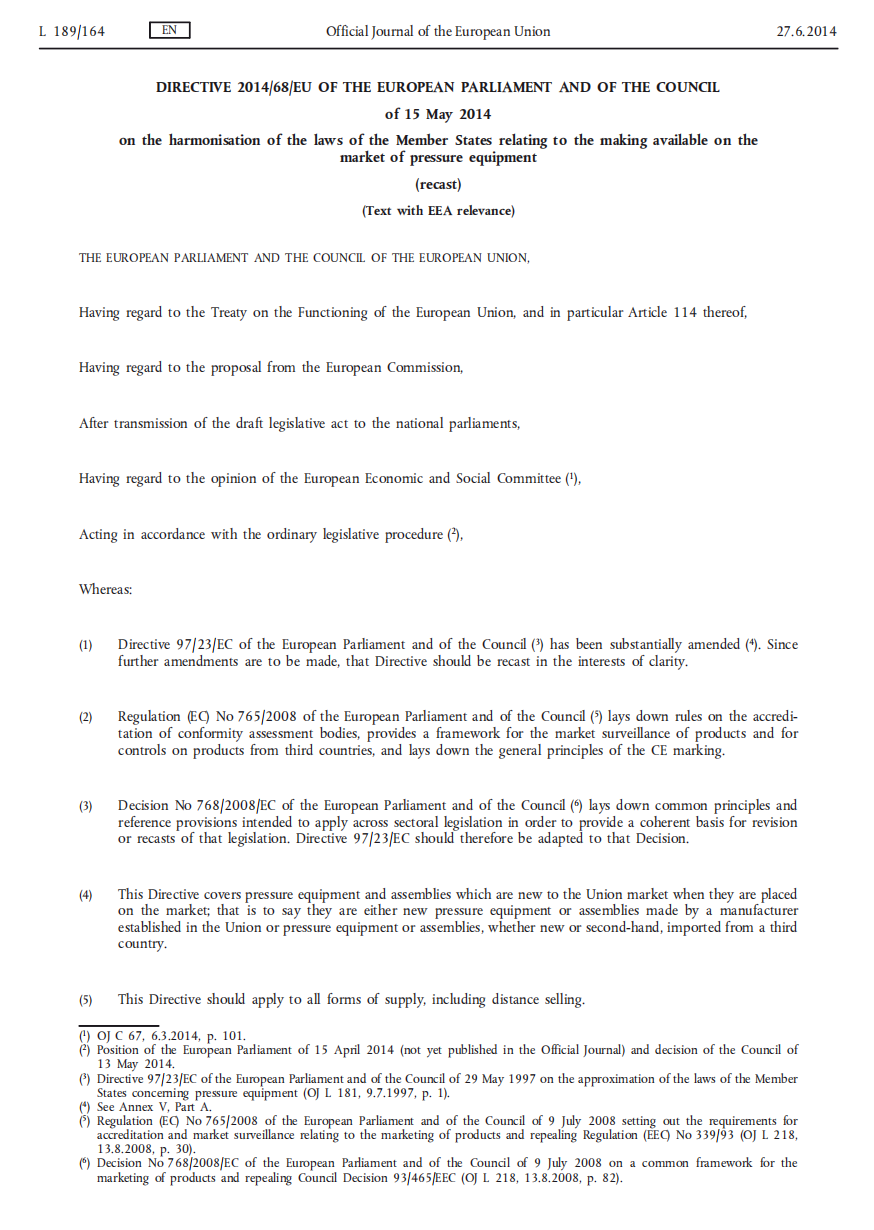

Contact our team for WSF reports , PED reports ,or related documents.
Our Test Report
FAQ
Q:1. Accepted Delivery Terms:
A: A: EXW, FOB, CFR, CIF, FCA, DAP, DDP;
Q: 2. Accepted Payment Currency:
A: USD, EUR, JPY, CNY;
Q: 3. Accepted Payment Type:
A: T/T
Q: 4. Language Spoken:
A: English, Chinese, Japanese, Korean;
Q: 5. Is sample can be provided?
A: Yes, our MOQ is 1 set.
Q: 6. Delivery time:
A: Depends on the design and quantity of the products, 20-50 days usually.
Q: 7. Packing:
A: Usually wrapped film, bubble wrap, paper shell board, wooden cases, or other packaging required by customers.
Q: 8. Are you a manufactuer or trading company?
A: We are manufacturer,Our factory is located in Dalian,China
Q: 9. Can you do the design for us?
A: Our engineers can provide design and drawings.
Q:10. How to keep product good quality?
A: First, Our quality control is ensured in every step. we have engineers to read and understand drawings, which could make sure the production is right at the beginning.
Second, we use good quality material of standard of GB, JIS,AMST. Material quality certificate is provided to clients.
Third, we have a professional QC team. They had worked in Japanese QC team for 3 years. The inspection goes through the process.
Forth, we make good package to protect the finished product and make sure they are sent to clients safely.
Q:11. When can I get the price?
A: With in 24 hours.
Q:12. Where is your company?
A: Our location is Dalian- a port city, in northeast China.
Q:13. Where is your loading port?
A: From Dalian Port (local port) . Dalian Port is an international port. There are many shipment routes to ports in Asia, European, America and Africa.
Q:14. If we have some other product requirements that your page don't include, can you help to supply?
A: Yes,We can customized for you.
Q:15. How long is the delivery period of the product?
A: Usually the delivery time is within 30 days after confirm drawing , adjust according to quantity and design.
Q:16. What quality certifications do you have?
A: ISO,UN 31A/Y,CE
Q:17. Do you have stock?
A: We have some standard IBC tanks in stock.
Q:18. How long is the warranty period?
A: one year
Q: 19. Which countries have your product been exported ?
A: Our products have been exported to many countries in Europe, Asia, North America, Oceania, till now ,such as Belgium, UAE, United States, Japan, Malaysia, New Zealand, Canada, Austria, Korea etc.
Q: 20. What's the shipping cost?
A: Please tell us your destination port. We'll check for you.
Q: 21. What's your best price?
A: The product is customized. We need to calculate for you.
