| Product name | Square Stainless Steel IBC Tote Tank |
|
Material |
All SS304 |
|
Size |
1290*1290*1960mm |
| Capacity Specifications |
- Fully customizable designs starting at 30L+ - Current production range: Up to 20,000L single-unit tanks - Larger welded configurations available (e.g., ~45,000L capacity) - consult engineering team for project-specific solutions |
|
Working Pressure |
- Square tanks: Standard atmospheric pressure or up to 0.02 MPa - Round tanks: Available in 4 bar, 6 bar, and 10 bar models (contact customer service for custom specifications below these ratings) |
| Safety & Accessory Options |
- Fully configurable systems tailored to operational requirements - Base configuration includes safety valves - Common client additions: • Pressure relief/breathing valves • Precision pressure gauges • Liquid level monitoring systems • Custom instrumentation packages - No-charge consultation available for specialty component integration |
| Video outgoing-inspection | Provided |
|
Machinery Test Report |
Provided |
|
Warranty period |
One year |
|
Weight |
420Kg±10kg |
|
Feature |
Corrosion resistance |
|
Technics |
Flat welding; angle welding |
|
Application area |
Food industry, pharmaceutical industry, chemical industry, household use |
| OEM & ODM | Accept |
Product Features
- Industrial-Grade Chemical Resistance
Withstands exposure to strong acids and alkalis without degradation.
- Reusable Design
Combines cost-effectiveness with environmental sustainability for repeated use cycles.
- Smart Sensor Technology
Integrated monitoring system tracks real-time temperature, fluid levels, pressure metrics, and GPS positioning.
- Optimized Logistics Performance
Cube-shaped construction maximizes space efficiency in storage and transport. Features stackable design compatibility with
standard pallet handlers, forklifts, and crane systems.
- Engineered Resilience
- Rugged construction ensures extended service life while maintaining:
- Transportation integrity
- Complete product evacuation
- Simplified cleaning protocols
- Damage-resistant operation
Stainless Steel IBC Tote Tank Welding Processes
Our primary welding methods include Gas Tungsten Arc Welding (GTAW/TIG) and CNC Laser Welding, supplemented by proprietary automated welding systems.
1. Gas Tungsten Arc Welding (GTAW/TIG)
Using a tungsten electrode arc as the heat source with argon shielding gas, this process protects the weld pool from atmospheric contamination (oxygen/nitrogen), ensuring oxidation-free joints.
Key Advantages:
- Premium weld integrity: Argon shielding prevents oxidation, producing contamination-free welds with exceptional density and zero porosity/cracking
- Deep penetration strength: Achieves high-density fusion suitable for pressure vessel requirements in IBC tank construction
- Heavy plate specialization: Ideal for stainless steel ≥2mm thickness, particularly for pressure-bearing components and internal tank welds
- Precision repair capability: Offers operational flexibility for complex joint configurations through manual/semi-automatic control
2. CNC Laser Welding
Our computer-controlled laser welding utilizes high-energy density beams for precision material fusion with minimal thermal distortion.
Performance Highlights:
- Micron-level accuracy: CNC-guided weld path control (±0.01mm positional/depth tolerance)
- Minimal thermal impact: Concentrated energy input reduces HAZ (Heat Affected Zone) and prevents material warping
- Production-ready finishes: Smooth weld beads requiring no post-processing
- Thin-gauge optimization: Perfect for intricate stainless steel assemblies and thin-walled structures
Contact our team for material reports, inspection records, welding evaluations, or related documents.
Certification and Compliance
Our company customizes designs to meet local customer specifications. Existing product designs comply with JIS and GB standards, while current pressure vessel production adheres to PED requirements through SEP self-certification (for units under 10kg).
We maintain readiness for immediate CE certification activation and hold full ISO system certification. All compliance documentation remains current and available for client review upon request.
Our Certification
Contact our team for WSF reports , PED reports ,or related documents.
世标认证/WSF
TUV

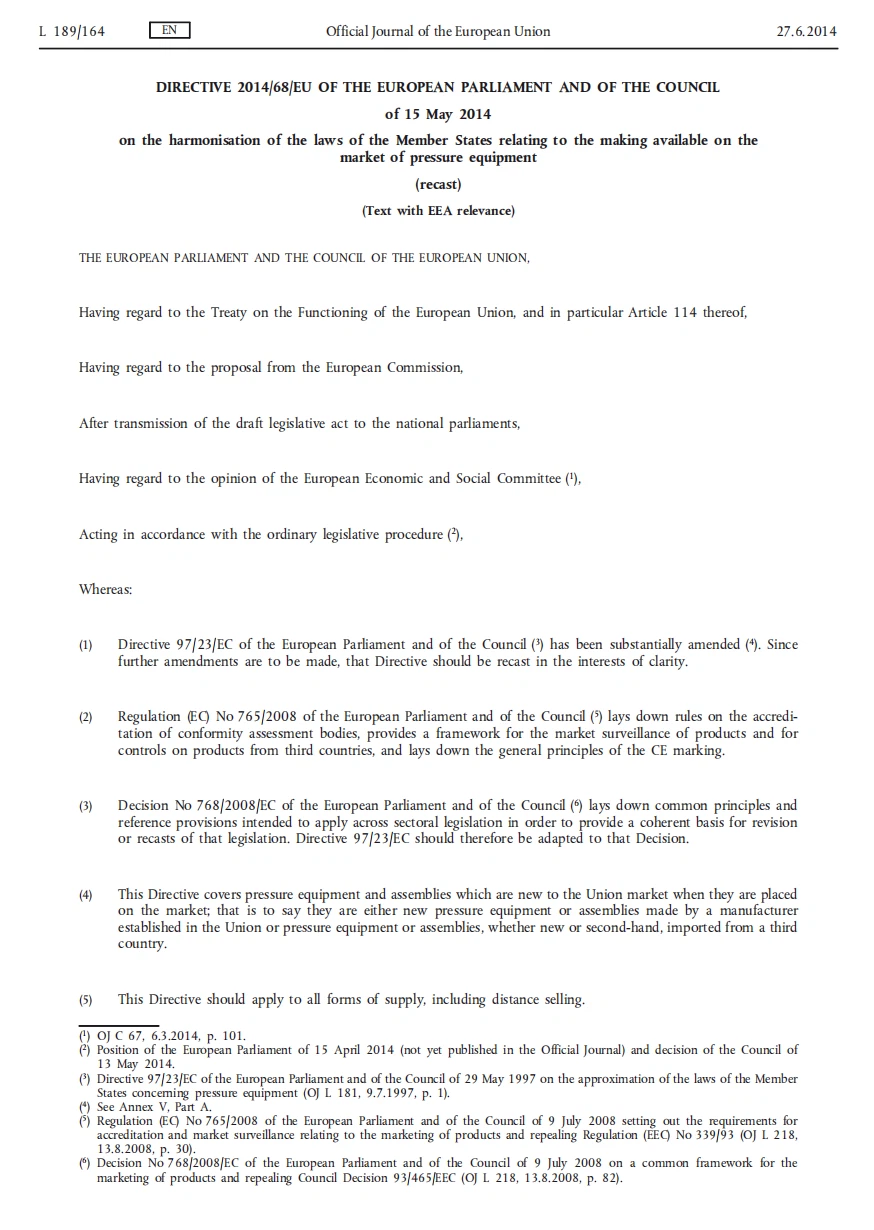

PED 2014-68-EU
Our advantages & why choose us?
We specialize in fully customized metal products with flexible OEM/ODM solutions. Our services accommodate specific brand components and accessory types to meet your exact requirements.
Key Customization Options:
- Tank configurations: Square/Round designs with optional stacking frames
- Functional features: Jacketed/coil heating-cooling systems, wheel bases, electronic controls
- Surface finishes: Mirror polish, 2B plate pickling, or custom treatments
- Material selection: SS304, SS316L, Q235 galvanized steel, and other metals
- Structural details: Adjustable dimensions, wall thickness, and valve configurations
Production Specifications:
- Welding standards: Leak-proof seams with smooth finishes - no slag, discoloration, or burrs
- Order flexibility: MOQ 1 unit (volume discounts available)
- Capacity engineering: Scalable solutions for any industrial application
- Design collaboration: Submit your blueprints or work with our engineering team
Primary Applications:
Industrial storage solutions | Bulk material transport | Process transfer systems
Pricing & Documentation:
- All quotes are project-specific based on technical specifications. We provide comprehensive CAD drawings for client approval and welcome existing designs for manufacturing.
- Cost efficiency improves with larger production runs due to optimized material utilization and streamlined workflows. Contact our engineering team to discuss your project requirements.
Partners
1. Sumitomo Corporation(Fortune 500): Custom 500-1000L stackable Square Stainless Steel IBC Tote Tanks with reinforced frames, featuring integrated pressure management systems (tank head valves)
2. Offshore energy leading company in Belgium
3. Yamato Soy Products: Fermentation vessels for traditional shoyu production(in Japan)
4. Flint Group: Precision ink storage systems
5. Kao Corporation: Cosmetic ingredient processing tanks(in Japan)
6. Osaka Chemical Engineering: Industrial reaction vessels (in Japan)
7. Manila Marine Services: Marine-grade diesel containment systems (in Philippines)
8. California Juice Packers: Aseptic food processing tanks (in USA)
9. Kuala Lumpur FoodTech: Hygienic mixing vessels with CIP capabilities (in Malaysia)
Detailed Photos
Localized service and after-sales
We maintain comprehensive documentation for each order, including end-to-end process tracking records (photographic and video evidence), pre-delivery quality inspection reports, and detailed material specifications.
Our primary export markets currently include Japan, Europe, Malaysia, New Zealand, the United States, and the United Arab Emirates. In the Japanese market, we operate through an authorized partner company that manages all after-sales services directly. All products are backed by a 12-month warranty period, with complimentary replacement of components provided throughout this guarantee timeframe.
FAQ
Q: 1. What is your terms of delivery?
A: EXW,FOB,CIF,CFR,DAP,DDP are available.
Q: 2. What is the delivery time?
A: The delivery time depends on the design and quantity of the products, typically ranging from 20 to 50 days.
Q: 3. How is the packaging?
A: The packaging typically includes wrapped film, wooden frame cases, wooden cases, or any other packaging specified by the customer.
Q: 4. When can I get the price?
A: With in 48 hours
Q: 5.Where is your loading port?
A: From Dalian Port (local port) . Dalian Port is an international port. There are many shipment routes to ports in Asia, European, America and Africa.
